X-Bull Electric Winch 10000 LBS 12V Synthetic Rope with Hawse Fairlead and Wireless Remote SUV Jeep Truck 4WD

$489.90 CAD
(7)
Brand X-Bull
Sold by Galaxy Auto

X-Bull Electric Winch 10000 LBS 12V Synthetic Rope with Hawse Fairlead and Wireless Remote SUV Jeep Truck 4WD

$489.90 CAD
(7)
Brand X-Bull
Sold by Galaxy Auto
Universal fit
Delivery options for location 43215
Change location
shipping-icon Not available for shipping location
We offer free standard shipping on most orders within Canada
Free
Estimated delivery -
shipping-icon Buy online & pick up
Free
About the product

The X-BULL 10,000 LBS Electric Winch is designed for off-road recovery and heavy-duty towing applications. With a powerful 4.0kW (5.5HP) DC12V motor, this winch ensures reliable performance in tough conditions. It features a high-strength synthetic rope with a 10mm/9.5mm diameter and 28m/24m length, providing durability and safety. The winch comes with both handheld and wireless remote controls, allowing for flexible operation. Whether you're stuck in the mud or tackling rugged terrain, the X-BULL 10,000LBS winch is a must-have for any off-road enthusiast.

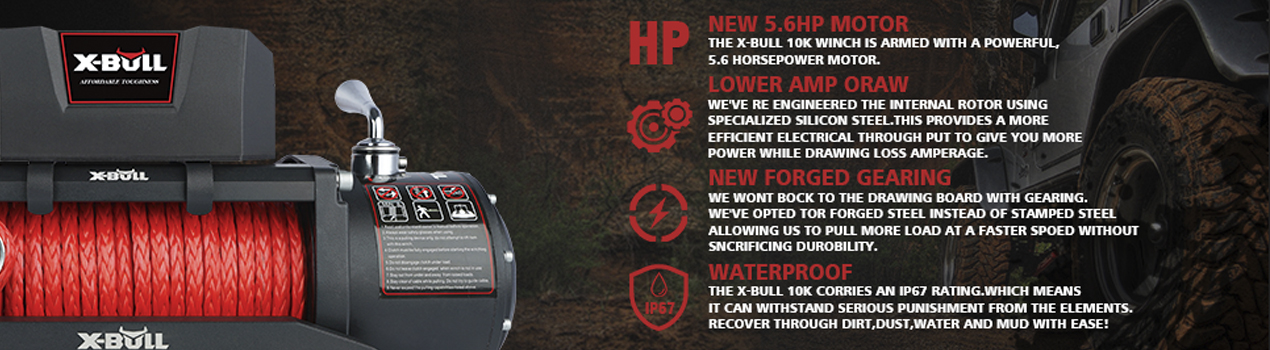

  • 5.6 HP SERIES WOUND MOTOR: The 10000 lb. Winch powered by a 5.6hp output series wound DC 12V pure copper motor. The new solenoid truly achieves the principle of heat insulation, durability, high stability, avoid the problem of capstan damage or motor burning caused by insufficient solenoid power.The new clutch system strengthens the connection between the clutch and the gear, it is not easy to cause damage to the clutch.
  • WINCH LOAD CAPACITY: 10,000 Pounds; 5.6 Horsepower; Gear Ratio: 218:1; With a 3-stage planetary gear system for strong pulling; The unique design is very suitable for your jeep Wrangler, SUVs, trucks and trailers, making it more attractive and cool.
  • NEW FORGED GEARING: We won't bock to the drawing board with gearing. We've opted to forged steel instead of stamped steel allowing us to pull more load at a faster speed without sacrificing durability.
  • 3-STAGE PLANETARY GEAR SYSTEM: With its efficient and durable 3 planetary gear system, free spooling clutch and ability to deliver strong traction under load and higher linear speed. Fast line speed, quiet and reliable pulling power, corrosion resistance, waterproof, tough, easy to grip and capable enough to tackle anything you will.
  • LOWER AMP ORAW: We've re-engineered the internal rotor using specialized silicon steel. This provides a more efficient electrical through put to give you more power while drawing loss amperage.
  • IP67 WATERPROOF: IP67 waterproof rating and advanced 500 AMP solenoid valve. Equipped with the latest generation wireless remote control for all the latest X-BULL winches.
  • INSTALLATION TIPS: To install the winch and fairlead, getting a mounting bracket set up which not includes in this product; Please read the instructions carefully and wire according to the instructions before operating the winch(Winches are electrical products that can cause short circuits and heat or smoke if wiring is wrong); Using the snatch block to help your work more easily; Throw a blanket onto the cables to reduce whiplash if something breaks loose; All winches are provided with a red cable marking to identify that 5 cable wraps remain on the winch drum when this mark appears at the rollers. No recovery should be attempted.



IN THE BOX

  • 1 x 10000 LBS Winch
  • 1 x Wire Remote Control
  • 1 x Wireless Remote Control
  • 1 x Aluminium Hawse Fairlead
  • 1 x Control Box
  • 1 x Clevis Hook
  • 1 x Set of Bolts
  • 1 x User Manual

You may also like
Key features
X-Bull Winch 10000 lb. Load Capacity Electric Winch Kit
layout--mage
layout--mage

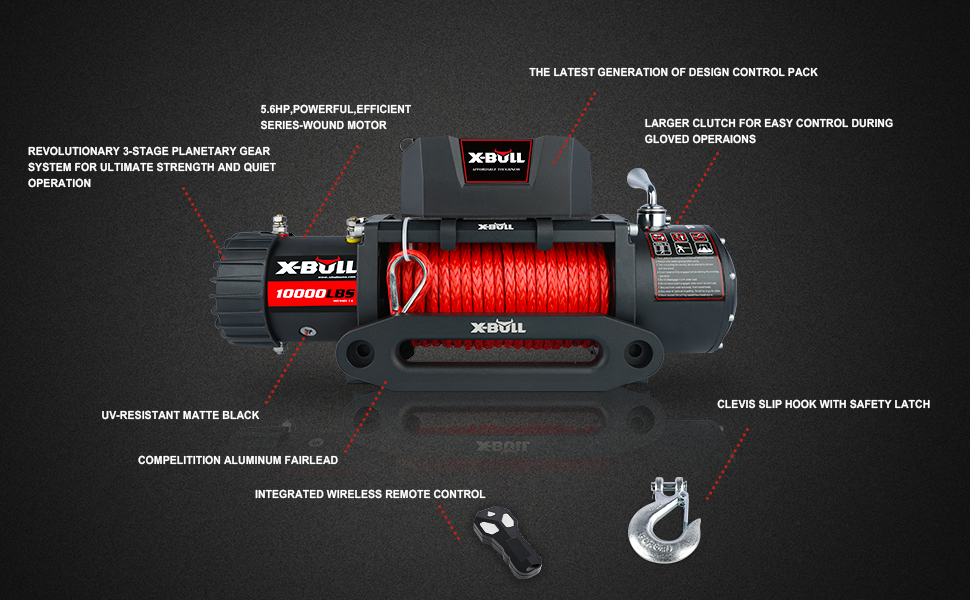

Features and Specifications
Three-stage Planetary Gear System Power In & Power Out Motor for Positive Load Control Automatic Load-Holding Braker for Maximum Safely High Tensile Synthetic Cable Free Spooling Clutch for Fast Wire Rope Payout Heavy Duty Sealed Contactor Wire/Wireless Remote Control Model for Easy Operation Alloy Hawse Fairlead

Advantages of Dyneema rope:
The weight of the Dyneema rope is 1/10 of the weight of the steel rope, which reduces the weight of the winch by about 20 pounds. The strength of the Dyneema rope is 10 times that of the steel rope. Dyneema rope has good resistance to bending fatigue, abrasion resistance, weather resistance, UV protection and chemical resistance. Dyneema rope is safer than steel when the rope breaks.
layout--mage
78 Feet Synthetic Rope
IP67 waterproof rating and advanced 500AMP solenoid valve. Equipped with the latest generation wireless remote control for all the latest X BULL winches.
layout--mage
10,000 Pound Winch Load Capacity
Winch Load Capacity: 10,000 Pounds;5.6 Horsepower; Gear Ratio: 265:1; With a 3-stage planetary gear system for strong pulling; The unique design is very suitable for your jeep Wrangler, SUVs, trucks and trailers, making it more attractive and cool
layout--mage
4.5kw / 5.6hp Output permanent magnet DC 12V motor
The new solenoid truly achieves the principle of heat insulation, durability, high stability, avoid the problem of capstan damage or motor burning caused by insufficient solenoid power.The new clutch system strengthens the connection between the clutch and the gear, it is not easy to cause damage to the clutch.
Reviews
4.9

/ 5

7 Reviews

Write A Review
  • 5
    6
    86 %
  • 4
    1
    14 %
  • 3
    0
    0 %
  • 2
    0
    0 %
  • 1
    0
    0 %
Showing 5 of 7 results
  • DE
    DE
    Dominic E. 11 months ago
    package arrived on time
    I have fitted it in arb sahara bumper. It fitted well except that we have to look for a smaller head bolt as the bolt just enough to fit the guide hole. Still able to install it without washer and lock washer. I have connected all the wires cables and follow the manufacturer instruction. It went well and everything is working perfectly. The on thing i worry is the power whether it will be able to keep me unstuck when needed. Hold on i will provide more review on this winch during action. But overall so far i give 5 stars for quality easy on installation and price affordability. To follow is the performance on different situations. Thank you.
    Universal fit
    0
  • K
    K
    Keith . 8 months ago
    Easy install and works
    The X-Bull 10,000 lb winch arrived on time. The rubber piece which fits over the wired remote was ripped in half so that is the only damage I can see. The winch works and is very easy to install. The winch also looks very good. *Installed on 95 jeep wrangler.
    Universal fit
    0
  • n
    n
    nathan . 9 months ago
    Good power and fast
    I am happy with the quality
    Universal fit
    0
  • CA
    CA
    Carlos A. 10 months ago
    Awesome
    Perfect for 4 Runner
    Universal fit
    0
  • BM
    BM
    Brian M. 1 year ago
    Everything works as expected
    One of the lighter winches I could find instal is easy and works as expected
    Universal fit
    0
